Home » Products » Digital Temperature Indicators Controllers » Universal Temperature Controller

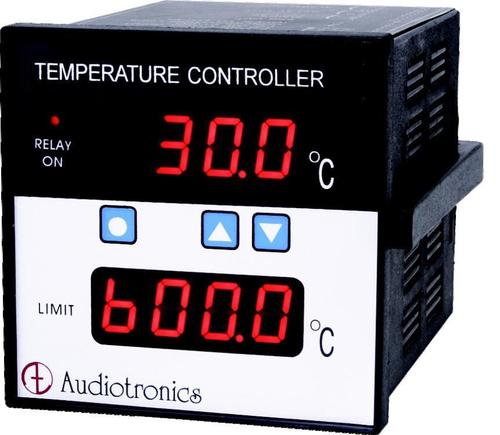

Universal Temperature Controller

Universal Temperature Controller
Universal Temperature Controller
Product Code : 752
Product Description
Specification

        Display           : 4+4 digit 0.56” 7 segment Red LED

      Sensor          : J,K,R & 3 wire PT100



Range           : J  T/C : 0 to  750˚C    K T/C :  0 to 1250˚C

                        R T/C : 0 to 1700˚C

                        PT100:  -100.0 to +600.0˚C



Accuracy      : ±0.1% of Full Scale ± 1 digit



Relay Logic : Programmable as Heater/Cooler logic

                      On/Off or time proportional with 15 sec

                      cycle time for heater logic

                      On/Off for cooler logic

                      5 Amps/220V AC Relay Contact outputs

Proportional  : -7.0˚C to +3.0˚C around set point with

Band               10% per degree cut



Hysterisis      : Settable from 0˚C to 20.0˚C

Band



Percentage   : User programmable from 0% to 100% to

Power              avoid overshoots and save power



Offset Band  : Settable from -20.0˚C to +20.0˚C



Memory         : Non-volatile EEPROM to save settings



Configuration : Open terminals 4&5 to lock the Sensor

Lock                 type, Relay logic and Set Limits



Supply           : 220V AC ± 15% @ 50/60Hz



Dimensions  : 96mm x 96mm x 135mm.

                        Cut Out : 91mm x 91mm

Weight          : 800 grams
