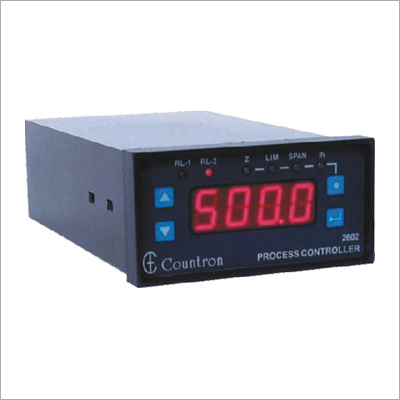

Universal Process Controller

Universal Process Controller
Universal Process Controller
Product Code : 2602
Brand Name : COUNTRONICS
Price And Quantity
  • Minimum Order Quantity
  • 1
  • Unit of Measure
  • Piece/Pieces
Product Description

Banking upon the strength of our experience team of professionals, we have emerged as a supreme manufacturer and trader of a wide gamut of a huge gamut of Universal Process Controller. Our offered controllers are designed and manufactured according to the international quality norms and guidelines. Also, we take help of cutting edge technology to manufacture these controllers. Our customers can avail this range according to their requirements and demands. Also, our range of Universal Process Controller is highly acclaimed and appreciated for feathers such as hassle free performance and the likes.

Model code:2602

Product Name:Universal Process Controller

Category:process_indicators_controllers

Sub Category:process_indicators_controllers

Features

· Microprocessor based precision controller

· Linearized for 7 types of common thermocouples & PT100 Temperature sensor with Auto cold junction compensation

· Input for 4-20mA / 0-20mA / 1-5V / 0-5V from Tx for Pressure, Humidity, pH, Temperature etc.

Display user programmable from 0 to 9999

· 4 Digit 0.56” Bright 7 Segment LEDs

· Decimal user settable

· Separate heater & cooler logic relays

· Hysteresis of relay control settable

· Offset separately programmed from front

· Configuration lockable by rear jumper

Excitation voltage for loop Tx. Sourced

· Touch type membrane control keys

Specification

· Display : 4 Digit 0.56” Red 7 Segment LED display

· Inputs : Linear (Universal from Tx)

0-20mA, 4-20mA, 0-5V & 1-5V

Non-linear (temperature sensors)

T/C – B,E,R,S,T,J,K and 3 Wire PT100

· Accuracy : ±0.25% of SPAN ± 1 Count

· Resolution: : 0.001 to 9999 for linear inputs

1.0 or 0.1 for Temperature Display

· Control : 2 Set of Control Limits

Set-1 heater logic & Set-2 cooler logic

5 Amps/220V AC Relay Contact output

Hysteresis settable

· Calibration : By software. Ambient by rear Pot

· Configuration Lock: Jumper at rear

· Exciter Voltage : 24V @ 30mA for loop Tx

· Power : 220V AC ± 15% @ 50/60 Hz

Ambient : 0-55˚C

· Humidity : Up to 90% (non-condensing)

· Power Consumption: 10VA

· Case : 48 x 96 x 180 mm Plastic ABS

· Front Fascia : 48 x 96 mm

· Panel Cutout : 45 x 92 mm



Trade Information
  • Payment Terms
  • Cheque, Others
  • Supply Ability
  • depends Per Month
  • Delivery Time
  • at stock Days
  • Sample Policy
  • Contact us for information regarding our sample policy
  • Packaging Details
  • Thermocol/Cardboard Boxes
  • Main Export Market(s)
  • Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa
  • Main Domestic Market
  • All India
