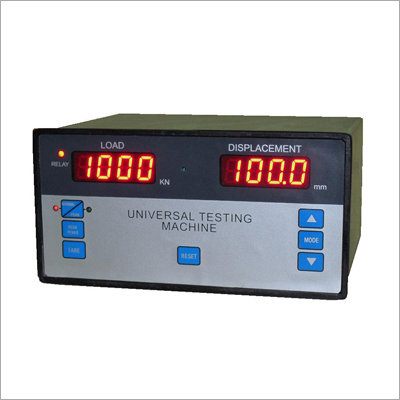

Peak Load Logger Indicator

Peak Load Logger Indicator
Peak Load Logger Indicator
Product Code : CT 904
Product Description

Banking upon the strength and caliber of our experienced and skilled team of professionals, we have become a noteworthy manufacturer and trader of a huger gamut of Peak Load Logger Indicator. These machines are designed and manufactured keeping in mind all the set quality norms of the industry. Also, we develop these machines with the help of superior-grade basic material and other components which are obtained from the genuine vendors of the industry. Furthermore, our range of Peak Load Logger Indicator is best known for features such as operational efficiency, robust design and so on.

Model code:CT-904

Product Name:Universal Testing Machine

Category:peak_load Indicators_loggers

Sub Category:peak_load_indicators

Features

Separate displays for load indication and displacement

Range for load indication corresponding to 4-20mA input digitally settable from front panel

Calibration of displacement for different rotary encoders

Peak/Normal mode selectable

Up to 9 peaks can be recorded and recalled for Load and Displacement

Buzzer annunciation at Peak

Relay output for cut-off protection for load, displacement as well as breaking load

Digital tare for load and displacement provided to remove initial error

Non-volatile memory for saving configuration

Configuration lock at rear to prevent tampering with Range

Aesthetically designed front panel with membrane switches

Specification;


Display

 4 Digit 0.56” 7 segment Red LED display for Load (KN)

4 Digit 0.56” 7 segment Red LED display for Displacement (mm)

Range

Load: 1KN       to    Range

Displacement: 0.1mm   to    999.9

Accuracy

 ±0.1% of Full Scale ± 1 digit

Input

From 2 wire loop transmitter giving 4-20mA output, 4-20mA input => 0 – Range

For displacement from 3 wire Rotary encoder (+5V pulses)

Relay Logic

 Relay ON for

1. Load ≥ Set Load Limit

2. Displacement ≥ Set Displacement Limit

3. Load falling below Breaking Load after peaking

 Normal/Peak Mode

 Selectable from front panel with LED indication of mode

Peak Read

 9 peaks of both load and displacement with facility to reset memory

Peak Detection

Peak hold is resettable from front Reset Switch or by a rear external contact

Tare Facility (Zero)

Digital Tare using front panel Tare switch (for removing initial error). Tare also resets Displacement to Zero

Memory

Non-volatile EEPROM to save settings

Configuration Lock

On rear terminals to prevent  unauthorized/accidental  alteration of Range using front switches

Supply

220V AC ± 15% @ 50/60Hz

Dimensions

Front Fascia: 96mm x  192mm

Cut Out : 92mm x 188mm
