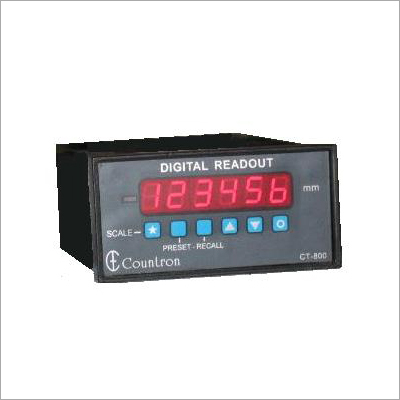

Digital Readout Indicator

Digital Readout Indicator
Digital Readout Indicator
Product Code : CT800
Brand Name : COUNTRONICS
Product Description

Backed by highly sophisticated production unit, we have become a a prominent manufacturer and trader of a wide ambit of Digital Read Out Indicator. These indicators are designed and manufactured using highly advanced production techniques and machines. This machine is used to ascertain the current position of each axle and the rotary speed of main shaft. In addition to this, our range of Digital Read Out Indicator is widely appreciated for features such as easy to install, trouble free operation, less maintenance and long lasting service life.

  • Model code:CT800
  • Product Name:Digital Read Out Indicator
  • Category:digital read out
  • Sub Category:digital read out display

Features

  • 6 digit bright 7 segment Red LED display for count display
  • Scale factor user settable from 0.00001 to 9.99999
  • 6 digit Preset value user settable
  • Pulse multiplication technique used for counting improves resolution 4 times.
  • Solid state memory to save user settings and count on power failure
  • Program Lock to prevent tampering with settings
  • Aesthetically designed front panel with touch type membrane keys
  • Housed in plastic ABS cabinet

Specification



 Display

 6 digit 7 segment Red LED display for count display

Red LED to indicate negative sign

 Input Signal

 +5V pulses from Channel A and Channel B of rotary/linear encoder

 Encoder Supply

 12V DC

 Scale Factor

 User settable from 0.00001 to 9.99999

 Count per Rev.

 (Pulses/Rev from encoder) x Scale Factor

 Preset Value

 User settable from -999999 to 999999

 Count Range

 -999999 to +999999

 Memory

 EEPROM to save settings and current count on power failure

 Program Lock

By rear jumper (open to lock) to prevent changes in

  • Scale factor

  • Preset value

  • Disables Resetting of Count (Zero)

  • Disables Presetting of Count to preset value

 Size

 48mm x 96mm

 Depth

 180mm

 Supply

 220V AC ± 15%

 Ambient

 0-55˚C

 Humidity

 Up to 90% (non-condensing
