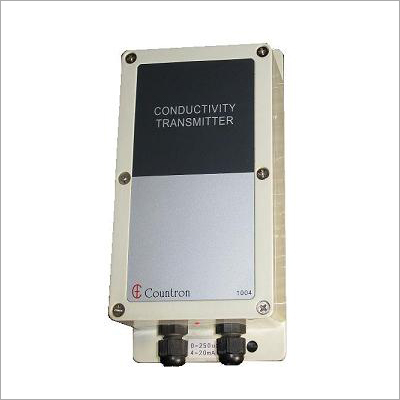

Conductivity Transmitter

Conductivity Transmitter
Conductivity Transmitter
Product Code : 1004
Product Description

We are a leading manufacturer and trader of a wide gamut of Conductivity Transmitter.  Used for various industrial applications, our range of transmitter is manufactured by making use of high grade basic materials which are sourced from reliable vendors of the industry.  Our range of Conductivity Transmitter is best known for its aesthetically designed weather-proof cabin.  Also, we have made it available for clients in different range starting from 19.99 µs  to 199.9mS (Factory Set). Also, these are timely delivered to clients end in a timely manner.

  • Model code:1004
  • Product Name: Conductivity Transmitter
  • Category: conductivity _meters _controllers
  • Sub Category: conductivity_ indicators

Features

  •  Precision indication of conductivity in 4-20mA output
  • Automatic Temperature Compensation @2%/˚C using PT-100
  • Range can be provided from 19.99 µs  to 199.9mS (Factory Set)
  • Aesthetically designed weather-proof cabin

Specification

 Range            : 19.99ms                    199.9ms

   (Factory Set)     1999 µs                    19.99ms

                           199.9µs                         1999 µs

                            19.99µs                         199.9µs

                            (0.1Cell)                     (1.0 Cell)

Accuracy         : ± 0.5% of F.S. ± 1

Sensor             : ‘Contact type’ with Cell constant   0.1 or 1.0.Temp.     : Uses PT-100, precision  temperature

Comp: sensor (external). The compensation is

                               internally set at 2%/˚C

Supply : 220V AC ± 15% @ 50Hz/60Hz

Size : 198mm x 89mm x 60mm (LxWxH)

                                     – with flange
